ACTIVE R3, bordo sensibile radio

ACTIVE-R3

Category:

Radio Safety Edge

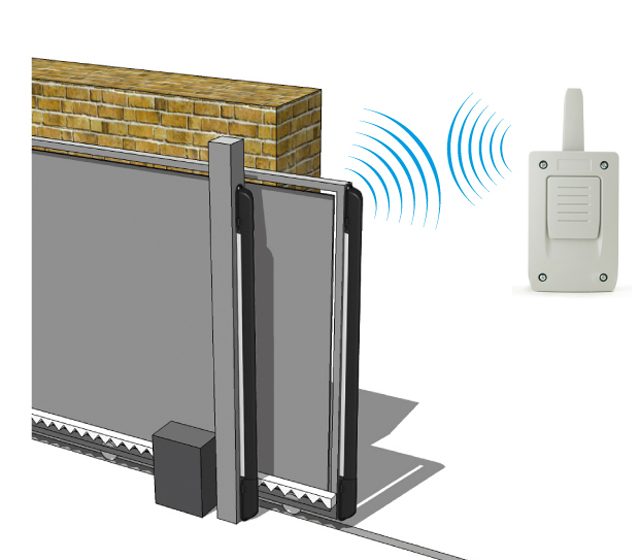

The ACTIVE-R3 safety edge is a small and discreet safety edge with conductive technology that ensures rapid response to impacts, over the entire length of the structure. The ACTIVE-R safety edge transmits the signal through the built-in two-way radio transmitter (868 MHz) powered by two 3.6V lithium batteries.

This edge is certified as a safety device cat.2, EN 12978..

The ACTIVE-R is easy to install and can be shortened to make it perfectly fit your needs.

Available in sizes 1.20 – 1.60 – 2.00 – 2.50 mt.

TECHNICAL DATA:
– Operating temperature: -20°C, 55°C;
– Frequency: 868 Mhz
– Degree of protection: IP65;

Find out other safety edges: ACTIVE, wired safety edge; CAPTIVE, Crashless (crash avoidance) safety edge.
