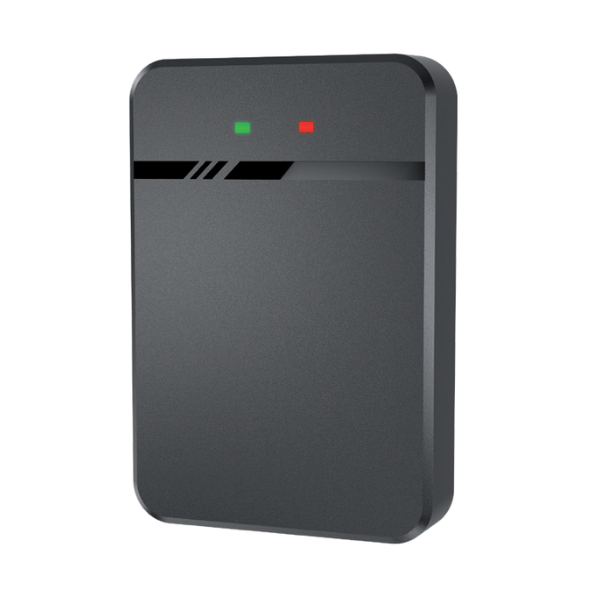

EASYLOOP is a cutting-edge virtual loop vehicle detection sensor designed to efficiently manage entrance and exit operations in parking lots, business parks and beyond.
Powered by FMCW (frequency-modulated continuous wave) radar technology and a compact design, it ensures reliable and precise detection, even in the harshest conditions.
• Advanced vehicle/pedestrian detection
• User-friendly installation via mobile app
• Designed for all-weather accuracy whether it’s rain, fog, snow or dust
• The sensor intelligently learns its surroundings and focuses only on the relevant detection zone to avoid false alarms
EasyLoop combines advanced radar technology with a compact design to deliver a reliable and precise vehicle detection solution. The 79 GHz millimeter-wave radar sensor reliably monitors vehicle movements at entrances and exits.

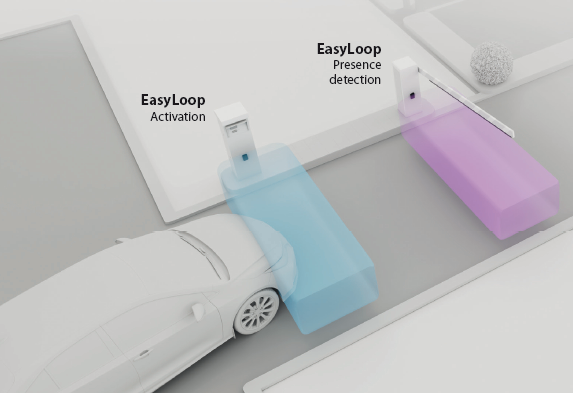

Activation

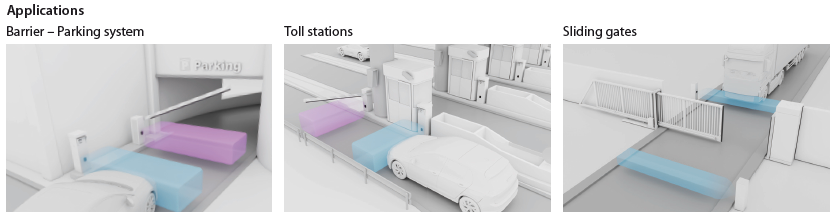

Used for various applications as an activator for ticketing systems at barrier systems in parking or toll facilities as well as sliding gates. Adjustable sensitivity settings allows you to detect vehicles and pedestrians or just vehicles. The uni- and bi-directional recognition feature prevents tailgating and unauthorized entry.
Presence detection
Function to safeguard various barrier types, preventing any contact with vehicles, pedestrians or objects. EasyLoop can be used for activation or presence detection of the following barrier types:
• Straight arm barrier
• Articulated/folding boom barrier
• Advertising and fence gate barrier
Technical specification:
Supply voltage: 9 –24 V DC (12 V / 1 A preferred)
Power consumption: < 2,5 W
Output : output NO/NC dual relay
Technology: Radar FMCW
Transmission frequency: Microwave 79 GHz
Detection width: 0.5÷1.5 m per side, con gurable via mobile app
Detection distance: 1÷6 m, default 3 m con gurable via mobile app
Detection height: max. 1,6 m
Interface: Bluetooth®/RS485
Response time: 100 ms
Wiring: 10 pin
Connection type: 1.2 m cable with plug connector
Installation height: 650÷800 mm
Installation position: Barrier gate box install
Operating temperature: –40 °C, +85 °C
Degree of protection: IP66
Housing material: PC, PBT, GF20, ABS black
Dimensions: (L × W × D) 108 × 74 × 17 mm
Conformity: according to RoHS 2011/65/EU; RED 2014/53/EU; EN12453 Type D
Datasheet
Instruction Manual
REQUEST INFORMATION
Niente più lavori stradali polverosi con attrezzature pesanti e rumorose. Basta montare il sensore, collegarlo e avviare l’autoapprendimento. Pronto all’uso!
APP MOBILE
Via mobile app, start a simple teach-in and setup 2 preconfigured loops in no time. If needed, configure up to 3 virtual loops independently to fit the application’s needs. Choose the loop type, target type and add a sense of direction to filter out cross-traffic.
MAXIMUM VERSATILITY
The Evoloop adapts to all applications. Whether you need to setup a paid parking system or need protection against collision with the boom, the EVOLOOP has it covered. It can be installed on all types of barriers, even with skirt or hinged support.
IN ANY WEATHER CONDITION
The Evoloop can be installed in any weather all year round. The virtual loops are reliable and resistant in all environments and conditions, including challenging weather like fog, heavy rain, frost or snow.
Technical specifications:
Technology: FMCW, MoWa inside (60GHz microwave)
Mounting height: 30 cm to 70 cm
Maximum detection distance: maximum 7m
Detection types: presence, protection
Radar field of view: 140° opening field and 40° elevation
Antenna angle adjustment: from -20° to +20° (without accessory)
Power supply: 12 - 30V DC +/-10% - 12-24V AC +/-10%
Output: 2 electronic relays (galvanic isolation - no polarity)
> Maximum switching voltage: 35 V DC/ 24 V AC
> Maximum current switchable: 80 mA (resistive)
Power consumption: < 3 W
Led: 3 RGB LEDs and 1 white LED for Bluetooth®
Bluetooth®: operating bandwidth: 2402 MHz - 2480 MHz
Material/ Colour: PC/ ASA/ Aluminium ADC12 - black
Cable length: 3 m (standard)
Dimensions: 50 mm x 150 mm x 68 mm
Protection degree: IP65 (IEC/EN 60529)
Operating temperature: -25°C to +55°C** ; 0-95% relative humidity, non-condensing
Standards: EN 12453 (type D)
-Datasheet
-Instruction Manual
