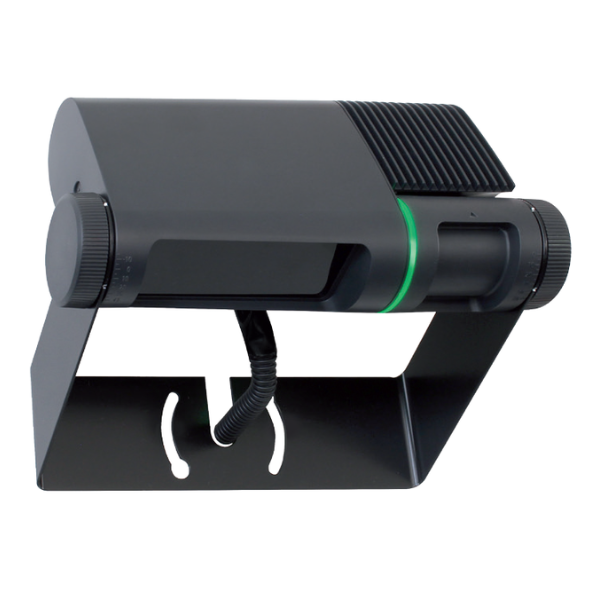

HELIOS 2T

Related products

•

  CONDOR

  Read more

  Dual technology sensor for industrial doors (opening and security)

  CONDOR is a presence and motion sensor for industrial doors, which integrates a microwave motion detector and an active infrared presence sensor into a single product. Active infrared technology detects any vehicle or object stationary near the door. The dual technology of microwaves (motion) and active infrared (presence) is an excellent alternative to magnetic loops: door opening and surveillance of the area in front of the door. It filters parallel traffic, pedestrians and any interference and is easy to install. Designed for industrial environments IP65, robust housing and solution against vibrations and environmental interference. Reliable and accurate The planar antenna allows for accurate discrimination between pedestrians and vehicles and does not detect parallel traffic. Energy saving Presence detection reduces the use of the door timer, allowing energy savings proportional to the number of opening cycles.   Technical features Mounting height: 3,5 - 6 m Power supply voltage: 12V a 24V AC ±10%; 12V a 24V DC +10% / -3% Mains frequency: 50 - 60 Hz Power consumption: < 3,5 W/VA Output: n.2 relays with potential-free switching contact Operating temperature: -30° C, +60°C (0-95% relative humidity, non-condensing) Doppler radar Microwave Detection mode: Movement Emitted frequency/wavelength: 24.150 GHz Power density emitted: < 5 mW/cm2 Detection range: 4 x 5 mt Minimum detection speed: 5 cm/sec Reaction time: 100 ms Inclination angle: - 8° / 22° (el. to the front panel) Active infrared Detection mode: Movement and presence Emitted frequency/wavelength: 875 Nm Power density emitted: < 250 mW/m2 Detection range: 4x4 mt (emission points)* * area detected with the SPOTFINDER, slightly larger than the detection range Minimum detection speed: 5 cm/sec to activate a detection Reaction time: 250 ms Inclination angle: 15° / 45° Compliant with regulations EN 300 440-2 V1.4.1, EN 301 489-1 V1.9.2, EN 301 489-3 V1.6.1, EN 62311, EN 62479 Data Sheet Instructions Manual
•

  WIDESCAN

  Read more

  Opening, presence and security detector for industrial doors

  7 laser curtains: door opening, surveillance of the area in front of the door, protection people on the threshold. Laser technology filters parallel traffic, ignores pedestrians and is not affected by weather conditions (rain, snow). 3D Coverage - Accurately calculates the dimensions, speed and objects direction. Door protection - Accurately detects approaching or parked vehicles to prevent possible contact with the door. Technical features - Max. detection range: depending on mounting height (adjustable) - Mounting height: from 2 to 10 m - Power supply: 12-24 Vac / 12-24 Vdc - Dimensions: 200x150x100 mm Data sheet Instructions Manual
•

  HR400-IND

  Read more

  Industrial Door Activation & Pedestrian Safety

  Door activation with pedestrian safety in one sensor at mounting heights of up to 4.7m. The 2-zone infrared safety barrier in front of the door protects pedestrians from dangers caused by door movement. The large detection area of 6m x 4m ensures earlyfast-approaching vehicles detection on all types of industrial doors, avoiding damage to doors or goods. Timely door opening Large adjustable detection area ensures timely door opening Optimize pedestrian safety High density infrared safety curtain protects pedestrians from dangerous door closures Eliminate door/goods damage Infinity presence timer prevents door closures on static objects left in the door close zone Reduce building energy loss Uni-directional detection technology reduces building energy losses by as much as 20%   Technical specifications: Detection method: active infrared detection Installation height: 2 m to 4.7 m Presence timers: 2 s, 60 s, 10 min, trigger Power supply: 12-24 Vac/Vdc ±10% (50/60 Hz) Protection degree: IP54 Power consumption: 12 Vac = 2.5 VA max / 24 Vac = 2.5 VA max / 12 Vac = 140 mA max / 24 Vac = 65 mA max Output 1: infrared relay Opto (not Pole) Output 2: radar relay Opto (not Pole) Voltage: 48 VDC max Current: 300 mA max (resistive load) Weight: 0.29 kg Operating temperature: -20 to +60 °C Dimensions: 265 x 61 x 37.5 mm Instructions
•

  FALCON/FALCON XL

  Read more

  Sensor for industrial doors

  Functional features: detects and discriminates parallel traffic of pedestrians and vehicles, preventing the door from opening. Discriminates pedestrians from vehicles regardless of their speed.

  Technical features Technology: Microwave and microprocessor Transmitter frequency: 24.125 GHz Transmitter power: <20 dBm EIRP Transmitter power density: <5mW/cm2 Angle of inclination: from 0° to 180° in elevation Mounting height: 3.5 to 7 m Minimum detection speed: 5 cm/s (in the sensor axis) Detection zone (typical): 4 m (W) x 5 m (D) (installation height 5 m) Detection mode: movement Supply voltage: 12V to 24V AC +/- 10%, 12V to 24V DC +30% / -10% Power consumption: < 2W Output relay: potential-free contact Max. voltage at contacts: 42V AC/DC Max. current at contacts: 1A (resistive) Max. switching power: 30W (DC) / 60 VA (AC) Manual adjustment: orientation of detection field (mechanical) / Multiple functions (via buttons) Temperature range: -30°C to +60°C Product compliance: R&TTE-1999/5/EC, EMC-89/336/EEC Dimensions: 127mm (D) x 102mm (W) x 96mm (H) Housing: black ABS and polycarbonate Aluminium bracket: black anodised Cable length: 10 m Data sheet Instructions Manual
