Herkules 2E, sensore di movimento radar per portoni industriali

HERKULES 2E

Category:

Radar motion sensor for industrial doors (opening)

The HERKULES 2E microwave motion detector for the activation of industrial doors is characterised by its outstanding functionality, user-friendliness and reliability.

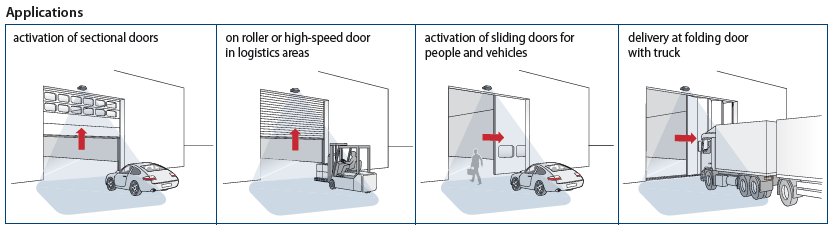

Depending on the requirement or needs of the customer, the microwave detector detects, differentiates between or masks out people or vehicles and can switch the output relays separately, making the Herkules 2E a powerful all-rounder for a broad range of industrial door applications.

  • Quick response time and easy installation
  • Two independent outputs offer maximum flexibility for every application
  • Cross traffic optimisation and object detection enable significant energy savings

Pulse on exit function
This function signals the industrial door to close after the activation field is cleared and vehicles leave. The shorter door opening time helps to reduce energy requirements in heated or
air-conditioned buildings.

Technical specifications:

Technology: Doppler radar with planar module
Transmission frequency: 24.05 – 24.25 GHz
Transmitter radiated power: < 20 dBm
Operating voltage: 12–36 Vdc / 12–28 Vac, (45–65 Hz)
Mounting height: from 2 m to 7 m
Housing material: Black anodised aluminium, polycarbonate cover
Degree of Protection: IP65
Outputs: relay
Switching voltage: 48 Vac/dc max
Switching current: 0,5 A max
Connection: cable di 10 m, 6 x AWG 24 (0,2 mm2)
Operating temperature: da -30 a +60 °C
Dimensions: 134 x 85 x 75 mm
Certications: FCC / IC / CE

Datasheet
Instruction Manual

REQUEST INFORMATION
