The RM620 Microwave Radar can be installed at a height of 3.5 to 6 meters, with a min. detection speed of 0.1 m/s and an adjustable range of 1-10 meters.
With planar technology, high resolution of coverage area and motion direction recognition, it is extremely versatile and can be used in multiple installations.
Its programmable functions and the ability to orient it vertically (0-60°) and horizontally (+/- 45°) make it easy to install.
It is developed in planar and X-band technology and can be adjusted in one-way (independently detects both directions of motion, forward or backward) or bidirectional (detects both directions of motion).
TECHNICAL FEATURES:.
– Power supply: 12/24 Vac / 12-30 Vdc
– Power consumption: 50 mA max
– Operating frequency: 9.90 GHz
– Relay contact: 1A – 24 Vac/dc
– Relay control time: 1-6 sec adjustable
– Maximum consumption: 40mA
– Degree of protection: IP65
TECHNICAL DATA
Detection method: motion = microwave (24.15 GHz K band) + active resection = infrared
Installation height: 3.5 m to 6.5 m
Presence timer: 30 s, 1, 2, 5, 10, 20 min, 1, 2 hours or infinite
Power supply: 12-24 Vac/Vdc ±10% (50/60 Hz)
Degree of protection: IP65
Power consumption: 12 Vca = 2,5 VA max / 24 Vca = 3,3 VA max /
12 Vcc = 150 mA max / 24 Vcc = 80 mA max
Output 1: infrared relay Opto (not Pole)
Output 2: radar relay Opto (not Pole)
Voltage: 48 Vdc max
Current: 300 mA max (resistive load)
Weight: 1,3 kg
Operating temperature: -20 to +60 °C
Dimensions: 230 x 140 x 115 mm

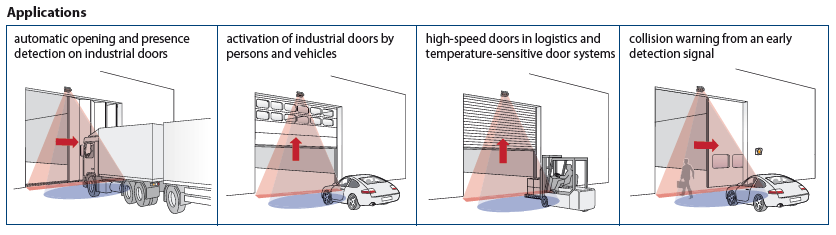

DOOR DETECTION AND OPENING
PARALLEL TRAFFIC FILTER FOR VEHICLES AND PEOPLE
DETECTION AND SECURITY OF OBJECTS/PEOPLE PRESENT IN THE AREA SURROUNDING
Easy configuration of settings and parameters via remote control (mandatory)
