SMALL53-IN

Category:

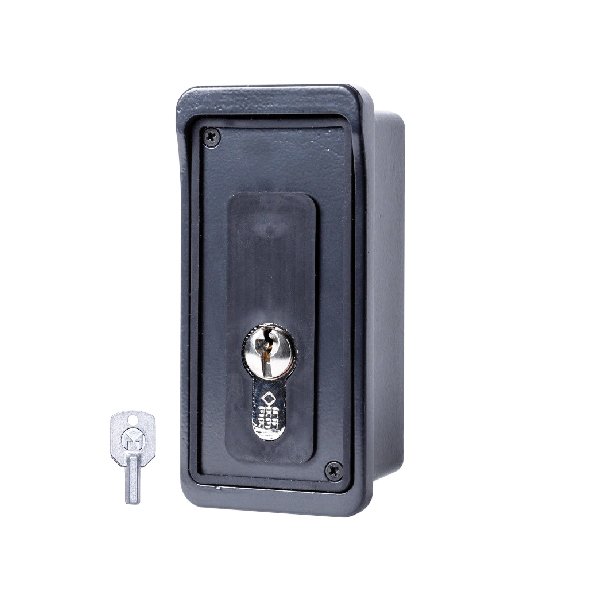

Flush-mounted selector switch with break release

TECHNICAL DATA

– Flush-mounted on tubular 40x60mm
– Interchangeable cylinder made in Italy
– Break release with hexagonal key
– Dimensions: 57x120hx37 mm

Data Sheet

REQUEST INFORMATION
