Non-contact, touch and mechanical door opening buttons

Non-contact, touch and mechanical door opening buttons

Showing all 6 results

  • CLEANSWITCH

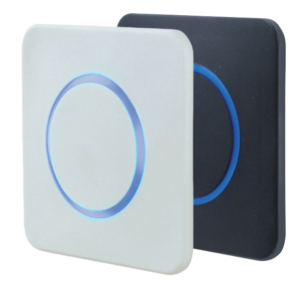

    CLEANSWITCH

    Read more

    Contactless door opening sensors

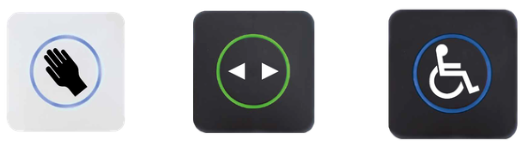

    Contact-free switch for convenient activation of entrances with strict hygiene and design requirements. CLEANSWITCH provides a contact-free, hygienic method of opening doors. It works by means of a deliberate hand gesture. Thanks to its attractive design featuring coloured LED feedback, CleanSwitch is an appealing, user-friendly addition to its environment. Customization Multicolor LED: color, brightness and method of optical feedback can be changed in few seconds. No. 3 different symbols are available to improve the ease of use: Technical specifications:  - Technology: microwave Doppler radar - Montaggio: surface - Operating voltage: 12-24Vac +/-10% (50-60Hz); 12-24Vdc +20/-10% - Power consumption: < 1W - Detection range: from 100 to 600mm - Detection mode: pulse mode: Detector is triggered by hand movement - Degree of Protection: IP65 (fixed with 4 screws, smooth surface) - Output: 1 Potential-free relay with changeover contact - Max switching voltage (DC): 1A to 30V; 0,5A to 60V - Max switching voltage (AC): 1A to 50V - Max switching capacity: 30 W (DC) / 50 VA (AC) - Material: ASA / PC - Transmission frequency: 24,125 GHz - Detection speed: min. 5Hz o ± 3cm/s - Max. 200Hz o ± 1.2m/s - Output fall-delay time : 0,3s - Operation temperature: da -20°C a +60°C - Dimensions: 88 x 88 x 38 mm - Standards: Directives RoHS 2011/65/UE; RED 2014/53/UE; Immission EN 61000-6-2; Emission EN 61000-6-3 Datasheet Instruction Manual
  • MAGIC SWITCH CHROMA sensore microonde per apertura porte senza contatto, antimicrobico, IP65

    MAGIC SWITCH CHROMA

    Read more

    Microwave touchless door sensor for automatic doors

    MAGIC SWITCH CHROMA is a contactless opening detector for automatic doors. A hand movement in front of the sensor opens the door automatically. With a special treatment of the front panel, the MAGIC SWITCH CHROMA is antimicrobial. For these reasons, it is the ideal sensor for applications where hygiene is essential: hospitals, clean rooms, pharmaceutical industries, hotels and restaurants, airports.   Technical features: - Technology: microwave - Mounting: surface mounted - Supply voltage: 12-24Vac +/-10%; 12-24Vdc +30/-10% - Power consumption: < 1.5W - Detection distance: +/- 100-600 mm if movement is towards the sensor at 90° (adjustable) - Detection method: bidirectional movement - Temperature range: from -20°C to +55°C - Output: 1 electronic relay (galvanic isolation - non-polarised) - Degree of Protection: IP65 (if the front panel and joint are mounted on a smooth surface) - Material: PMMA / PC. The front panel is treated with a Biomaster silver biocide tested according to ISO 22196:2011 - Recommended wiring cable: stranded cable up to 16 AWG - 1.5 mm² - Dimensions: 80 x 80 x 20 mm Instruction manual
  • J-WAVE sensore infraorissi per apertura porte automatiche senza contatto

    J-WAVE

    Read more
    Non-contact door opening sensor infrared
    Slim low-profile design switch with touchless technology that limits germ spread and improves accessibility in healthcare, retail, and commercial environments. Fast reaction time with ability to detect very fast movements in front of the switch. J-Wave is made of a robust polycarbonate material with a constantly illuminated allowing easy detection in dimly lit environments. TECHNICAL DATA - Technology: active infrared - Supply voltage: 12-30 VDC, 12-24 Vac - Power consumption: < 1.5W - Detection distance: 100-300mm ± 30-50mm - Temperature range: -20°C to +50°C - Output: Relay contact (1A /30 VDC) - Degree of protection: IP54 - Dimensions: 40 x 117 x 19,5 mm Data Sheet Instruction manual
  • CLEARWAVE sensore di apertura porte sena contatto a microonde

    CLEARWAVE

    Read more
    Non-contact door opening sensor microwave
    Door activation switch with microwave non-contact designed for situations where hygiene is a factor of primary importance, such as clean rooms, environments used in the processing of food products and chemical industry applications. TECHNICAL DATA - Technology: microwave - Supply voltage: 12-30 VDC, 12-24 Vac - Current consumption: 40 mA (24 VDC) - Detection distance: adjustable 50-400mm ±30-50mm - Temperature range: -20°C to +60°C - Output: relay type 1C (one switching contact) - Degree of protection: IP55 - Dimensions: 85,9 x 85,9 x 20 mm Data Sheet Instruction manual
  • AER WAVE

    AER WAVE

    Read more
    Infrared and wireless botton for door opening without contact
    TECHNICAL DATA - Technology: infrared and wireless - Target: hand and/or object* (* the detection distance varies with the objects's colour) - Response time: <1 sec - Wireless transmission distance: max 10m (with receiver WR-24) - Dimensions: 95 (A) x 95 (L) x 20 (P) mm - Protection degree: IP65 - Power supply: n.2 batteries CR123A (included) - Absorption: <0,5 mW/H - Operating temperature: -20°C, +50°C Data Sheet Instruction manual
  • PUSH PLATES

    PUSH PLATES

    Read more
    Touch and mechanical door opening buttons
    Opening with a simple push for every type of automatic door TECHNICAL DATA - Made of stainless steel with anti-scratch treatment - Water-resistant - Dimensions of rectangular version: 120 (H) x 38 (W) x 16 (D) mm - Dimensions of square version: 120 (H) x 120 (W) x 16 (D) mm - Degree of protection: IP52 - Output contacts: dry (NO, NC, COM) - Contact voltage: 42 Vac max - Contact current: 0.5A max - Operating temperature: -30°C, +55°C Data Sheet Instruction manual
