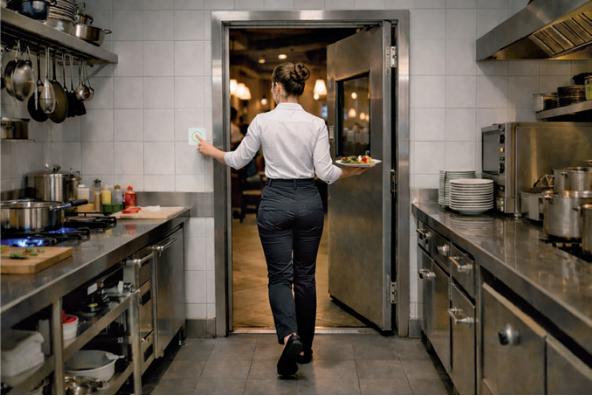

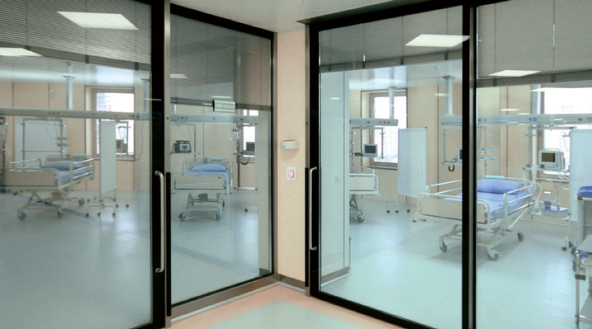

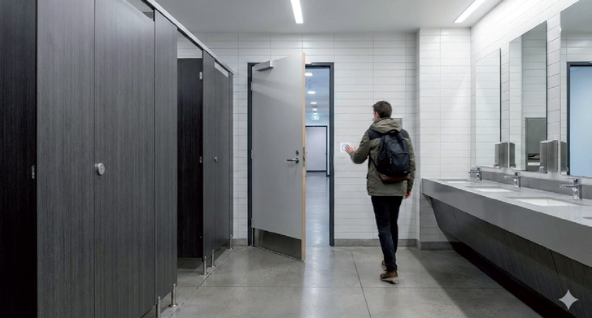

Contact-free switch for convenient activation of entrances with strict hygiene and design requirements.

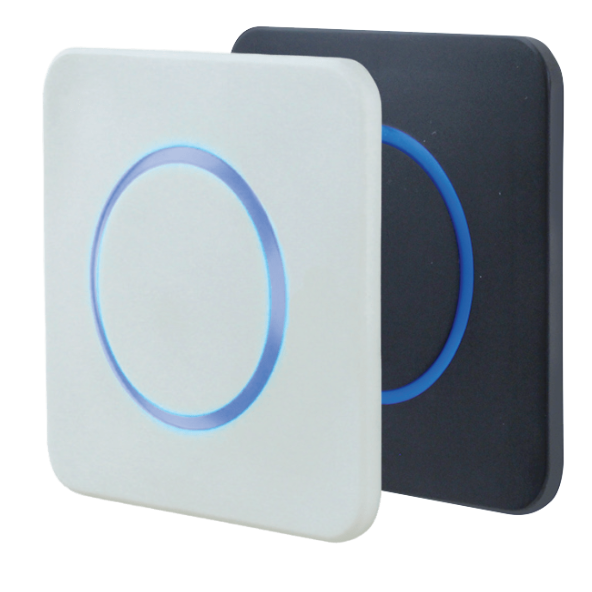

CLEANSWITCH provides a contact-free, hygienic method of opening doors. It works by means of a deliberate hand gesture. Thanks to its attractive design featuring coloured LED feedback, CleanSwitch is an appealing, user-friendly addition to its environment.
Customization
Multicolor LED: color, brightness and method of optical feedback can be changed in few seconds.
No. 3 diff erent symbols are available to improve the ease of use:
Technical specifications:
– Technology: microwave Doppler radar
– Montaggio: surface
– Operating voltage: 12-24Vac +/-10% (50-60Hz); 12-24Vdc +20/-10%
– Power consumption: < 1W
– Detection range: from 100 to 600mm
– Detection mode: pulse mode: Detector is triggered by hand movement
– Degree of Protection: IP65 ( fixed with 4 screws, smooth surface)
– Output: 1 Potential-free relay with changeover contact
– Max switching voltage (DC): 1A to 30V; 0,5A to 60V
– Max switching voltage (AC): 1A to 50V
– Max switching capacity: 30 W (DC) / 50 VA (AC)
– Material: ASA / PC
– Transmission frequency: 24,125 GHz
– Detection speed: min. 5Hz o ± 3cm/s – Max. 200Hz o ± 1.2m/s
– Output fall-delay time : 0,3s
– Operation temperature: da -20°C a +60°C
– Dimensions: 88 x 88 x 38 mm
– Standards: Directives RoHS 2011/65/UE; RED 2014/53/UE; Immission EN 61000-6-2; Emission EN 61000-6-3
