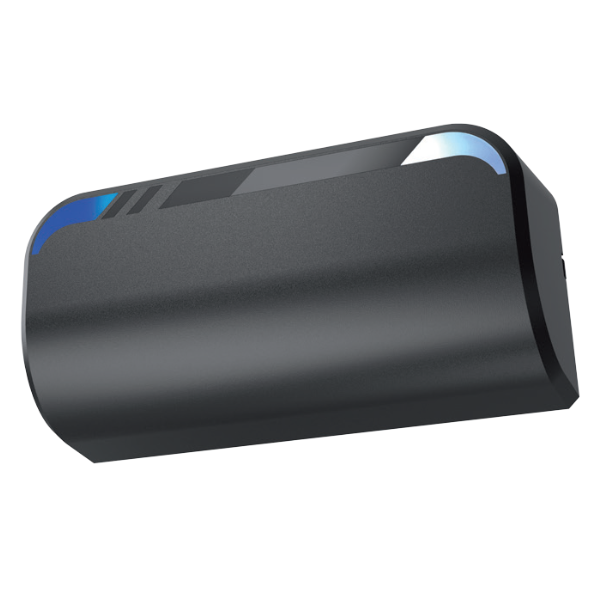

FutureSense is a multidimensional radar sensor for swing and revolving doors. Its latest door activation technology based on FMCW (frequency-modulated continuous wave) enables human behavior analytics. This cutting-edge software continuously tracks key human movement parameters, such as approach, direction, and velocity to determine genuine intent to enter. FutureSense marks the next generation of smart sensing solutions. It maximizes comfort and energy savings by tracking the movement and behavior of an object, only opening when necessary.
Adaptive door behavior:
The integrated LEDs provide clear visual feedback, combining functional performance with modern design.
They indicate the operating status of the sensor, as well as its detection and activation.
Technical specifications:
– Technology: Radar FMCW
– Operating voltage: 12 V DC÷36 V DC/ min. 18 V AC, max. 28 V AC (50 Hz /60 Hz)
– Operating current: max. 120 mA a 24 V
– Radar transmission frequency: 60 Ghz
– Radar output: solid state relay, max. 36 V DC/24 V AC, max. 250 mA
– Field dimensions (L×P): max. 5,00 × 6,00 m con gurable via mobile app
– Housing material: ABS black color
– Mounting height: from 2 to 3,5 m
– Connection: 3 m cable with plug connector
– Degree of Protection: IP54 (EN 60529)
– Inrush current: max. 1 A
– Operating temperature: from -20 °C to +60 °C
– Relative humidity: max 95% non-condensing
– Dimensions: 105 × 49 × 35 mm (L × L × P)
– Certi cations: RED2014/53/EU; RoHS2011/65/EU
