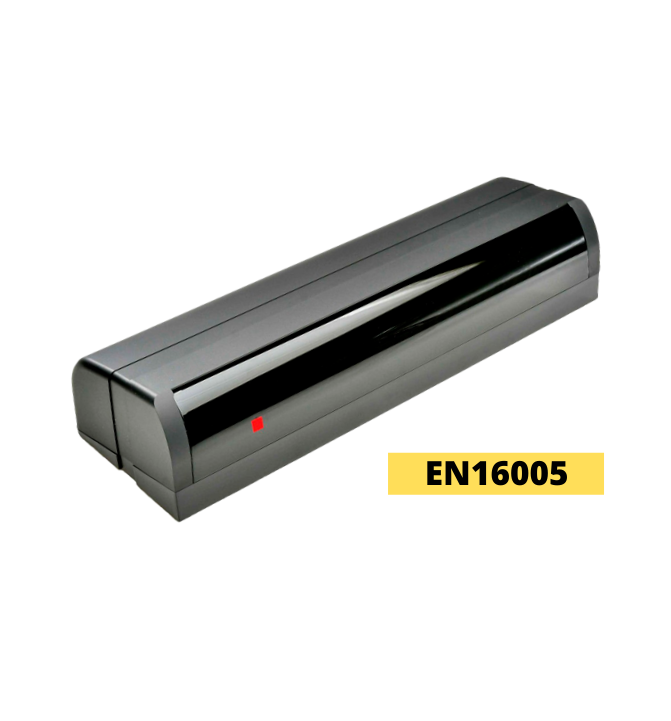

HR100-CT/BL

Related products

•

  HP1

  Read more

  Infrared safety beam sensor for sliding doors

  Operating ranger of 0,15 m to 10 m Single set of safety beam heads Detection Method: infrared Detection Detection Range: 15cm÷10m Sensor Dimensions Controller: 43,7mm (L), 114,2mm (A), 29mm (P) Sensor Head: 15mm diameter Power Supply: 12÷30Vca o Vcc Power Consumption Max: Max 1W Operating Temperature: 30°C, +55°C Data Sheet
•

  FLATSCAN SW

  Read more

  Security sensor for swing doors

  FLATSCAN SW uses LASER technology (time-of-flight measurement) and is ideal for swing doors. It generates 170 measurement points to provide complete protection for doors and users. Easy to install, a single FLATSCAN SW is sufficient to cover the entire width and height of the door leaf, as well as the shear zone, regardless of its dimensions. Compact design The FLATSCAN SW can be used on swing doors of any size. Its compact design (8.5 cmx14.2cm) makes it easy to store. Independent of floor and surrounding environment Laser technology guarantees stability regardless of the type of floor (wire mesh, absorbent carpet, reflective flooring, slippery surface, etc.). It is also independent of the surrounding environment (handrails, walls, radiators, bins, etc) Cut-off zone protection FLATSCAN SW covers the area of the door hinge to protect hands and fingers during closing. It has 100 points, distributed over 18° in the cut-off zone. Rapid and intuitive installation. The size of the sensor area is defined by the movement of the hand. The sensor can be adjusted using the CTRL remote control Technical features: - Technology: LASER scanner, time-of-flight measurement - Maximum detection distance: 4m (diag) with 2% reflectivity (e.g.: at l=1.5m -> max. H=3.7m) - Opening angle Door protection: 86° / Hinge area: 18° - Angular resolution Door protection: 1.23° / Hinge area: 0.18° - Dimensions of detected object: Door protection: 10 cm @ 4m - Hinge area: 2 cm @ 4m - Emission characteristics: Infrared LASER Wavelength 905 nm; max. pulse output 25 W; Class 1 - Power supply / Consumption: 12-24V DC ± 15% /  2 W - Response time Door protection: max 50 ms / Hinge area: max 90 ms - Output: 2 electronic relays (galvanic isolation - non-polarised) - Maximum switching voltage: 42V AC/DC - Maximum switchable current: 100 mA - LED indicators 1 two-colour LED: status detection / output - Dimensions: 142 mm (W) × 85 mm (H) × 23 mm (D) (mounting bracket + 7 mm) - Adjustment angle / Protection rating: +2° to +10° (without mounting bracket) / IP54 - Temperature range / Humidity: -30°C up to +60°C under voltage / 0-95% non-condensing - Regulations: RoHS 2 2011/65/EU; MD 2006/42/EC; EMC 2014/30/EU; LVD 2014/35/EU EN12978; EN ISO 13849-1Pl “d”/ CAT2; EN 60529; IEC 60825-1; EN 60950-1; EN 61000-6-2; EN 61000-6-3; IEC 61496-1; EN 61496-3 ESPE Type 2; EN 62061 SIL 2; DIN 18650-1 Chapter 5.7.4 (testbody CA);EN 16005 Chapter 4.6.8 (testbody CA) Data sheet Instructions Manual
•

  3H-IR14C/BL

  Read more

  Activation and safety of sliding doors in a compact sensor size, according to EN16005

  Infrared technology, dual relay output. TECHNICAL DATA - Technology: active infrared resection - Supply voltage: 12-24 Vdc/Vac ± 10% - Current consumption: 40 mA (24 VDC) - Installation height: 3000mm max - Temperature range: -20°C to +60°C - Output: SAFETY = NO relay contact / ACTIVATION = NO relay contact - Degree of protection: IP54 - Dimensions: 210 x 59 x 28.5 mm Data Sheet
•

  ORASCAN

  Read more

  Opening and security sensor for automatic sliding doors

  ORASCAN system is a safety and opening sensor kit for sliding doors, the first to combine radar and laser technologies. The Artek inside radar system allows doors to be opened comfortably and energy-effciently, while the ‘Time of Flight’ laser technology ensures complete safety protection for the door Press and Configure: By pressing a single button, ORASCAN detects the door dimensions and automatically positions the laser coverage, regardless of the environment or door type.   A versatile and universal solution This sensor is suitable for all types and sizes of automatic sliding doors, including large, telescopic, airtight, fire-rated and emergency exit doors, with sensors on both sides for complete control of opening, safety and virtual buttons For all types of flooring and weather conditions Laser technology is completely independent of the surrounding environment. The ORASCAN system is compatible with all types of ooring and weather conditions   Maximum safety ORASCAN protects the primary edge and threshold of the door across its entire height, width and depth. Contact with the moving door leaves is avoided in all situations. Mobile app: ORASCAN can be configured and monitored using the easy-to-use mobile app, which connects to the sensor via Bluetooth. Intuitive platform with guided learning procedure and 3D visualisation Technical features: - Power supply: 12-30 V DC ± 10% - Power consumption: < 5W - Mounting height: 2 to 3.5 m. - Detection mode: motion (Radar) + presence (Laser) - Vibrations: < 2G - Material: PC/ASA - Protection rating: IP54 (EN 60529) - Temperature range: -25°C to +55°C, humidity: 0-95% non-condensing - Technology: Microwave Doppler radar Transmitter frequency: 24.150 GHz Minimum detection speed: 5 cm/s Laser Scanner - time-of-flight measurement Field of view: 180° - Angle of inclination: 0° to -7° Min. object size: 5 cm at 4 m - Bluetooth®: operating band 2402 MHz – 2480 MHz / Maximum transmitted power: 12 dBm - Dimensions: 273 mm (W) × 71 mm (H) × 67 mm (D) - Standards: EN-16005; DIN-18650 Data sheet Instructions Manual
