Proloop2, rilevatore induttivo a spira magnetica per cancelli automatici, sistemi di barriere, parcheggi e dissuasori

PROLOOP2

Category:

Loop detector

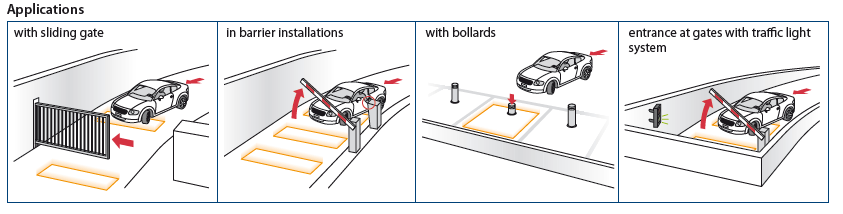

Loop detector for industrial doors and gates, car parks and parking bollards.

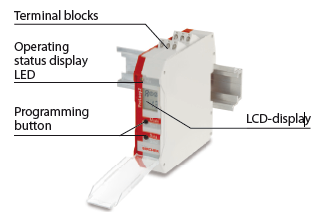

With PROLOOP2, loop detection ensures maximum reliability. The system monitors and evaluates using induction wire loops laid in the ground and in this way recognises metal vehicles of all types: bicycles, cars, forklifts, trucks or truck/trailer. The intuitive operating and display concept makes ProLoop2 particularly user-friendly and guarantees the highest levels of reliability. Intelligent software and compact design make operation and start-up really easy.

  • Rapid start-up
  • Easily serviced and monitored
  • Individually adjustable
  • Integral measuring device
  • Programmable at any time

Technical specifications:

– Supply voltage/ Power consumption:
24 V AC from –20% to +10%, 50/60 Hz, 2 W
24 V DC from –10% to +20%, 1,5 W
100–240 V AC ±10%, 50/60 Hz, 2,9W
– Loop inductivity: max. 20 at 1000 μH; ideal 80 at 300 μH
– Frequency range: 4 stages
– Loop resistance: < 8 Ohm incl. supply cable
– Output relay: loop: AC-1: max. 240 V AC, 50/60 Hz; 2 A – DC-1: max. 30 V DC; 1 A
– Housing: For DIN rail mounting
– Type of connection: Clamp-type terminals
– Max. ascertainable vehicle speed: 50km/h with the appropriate loop
– Degree of protecton: IP 20
– Operating temperature: from -20 °C to +60 °C
– Storage temperature: from -40 °C to +70 °C
– Humidity: < 95% no condensation
– Dimensions: 22.5 x 94 x 90 mm (L x A x P)
– Conformity: RED 2014/53/EU

Datasheet
Instruction Manual
