NEONFLEX10
Read more
Silicone LED light diffuser with white light and aluminium profile

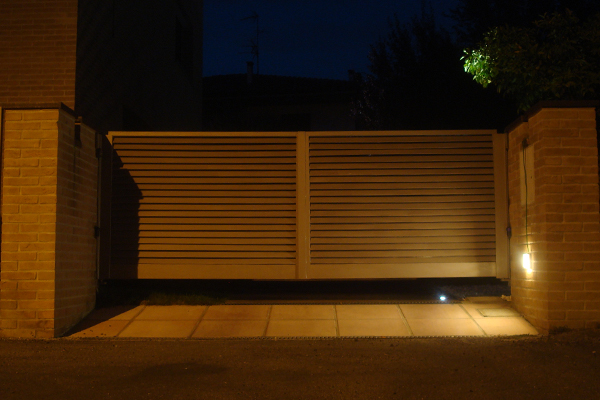

NEONFLEX10 is a flexible LED strip with fixed white light, designed to ensure maximum visibility in automation, access control and signalling systems.
Ideal for highlighting the opening or presence of doors, gates and driveways, it comes complete with an aluminium profile for quick, secure and durable installation.
The light source uses high-density LED technology, capable of generating continuous and uniform lighting without the visible light points typical of traditional strips, thus ensuring a diffused and extremely clean effect. It is available in three lengths – 1000 mm, 1500 mm and 2000 mm – and can be shortened to size thanks to the integrated cutting notches, which facilitate adaptation during installation.
Its anti-UV treatment, solvent resistance and IP67 protection rating make it perfect for outdoor applications, even in harsh conditions with dust, rain, salt water or chemicals.
Technical features:
Power supply: 24 Vdc
Power: 10 W/m
Brightness: 486 lm
Light temperature: 3000 K
Degree of protection: IP67
Dimensions: 30 x 13 x 1000 mm /30 x 13 x 1500 mm /30 x 13 x 2000 mm
Profile: Aluminium
Wiring: Cable length 100 cm
Operating temperature: -25°C, +60°C
MICRO RGB
Read more
Led signal light - RGB
MICRO-RGB is the innovative
micro led (RGB) segnal light, ideal to
monitor the status of an alarm system, a door or a access control system.
This signal light keeps the same
minimal design style and
reduced dimensions as the classic MICRO range, but offers a more modern result thanks to the
glass and steel colours which perfectly fit the contemporary aluminium window/door frames.
MICRO-RGB has a
3 poles terminal block (common and 2 poles for independent connection of the lights) and the combination of colours displayed on the signal light is decided by moving the dip-switches.
The fixing base is aliminium colour painted and the screws are well hidden to guarantee a very pleasant visual impact. The
rear gasket, typical of the whole MICRO range, ensure good isolation and perfect adherence on every kind of fixing surface.
Dimensions: 70 x 27 x 16 mm
Discover the other products of the MICRO range: MICRO-P27S, micro photocell; MICRO-TRAFFIC, micro traffic light rosso/verde; MICRO-FLASH, micro led flashing light.
MEGARETROFIT
Read more
Universal spare board with high luminous efficacy, 18 leds
Thanks to our long-term experience with the Retrofit spare board and to our constant research of electronical components, we designed a universal failsafe board: thanks to its 18 leds laid out all around, it guarantees
MEGA-visibility to your flashing lamp!
The wiring is made by
2 terminals from 12V to 230V ac and cc: thanks to the jumpers you can
select the current and the light mode, steady or flashing.
Its
18 LEDs laid out all around ensure excellent visibility to your system and
high luminous efficacy.
The optional buzzer can be placed outside the ashing lamp and the antenna is suitable for 433 and 868 Mhz frequencies.
FLAT WHITE
Read more
9 LED white light indicator for gates and doors - high brightness
FLAT WHITE is a fixed white LED indicator designed to provide clear and highly visible light signalling at automatic gates, transit areas or access points. Equipped with 9 high-brightness LEDs, it guarantees intense light, ideal for increasing safety in industrial, residential, condominium or commercial contexts.
The UNI EN 12453:2017 standard for automatic gates, while not specifically requiring constant lighting, emphasises the importance of safety and visibility during operation. Adequate lighting helps to make the gate clearly visible, reducing the risk of accidents, especially in low light conditions.
Compact and durable, it is constructed with a metal frame and stainless steel screws, and is suitable for outdoor use thanks to its IP65 protection rating. It can be powered directly at low voltage or via the dedicated TRAFFIC DRIVER converter for 230 Vac systems. The long life of the LEDs – up to 50,000 hours of operation – and low energy consumption make it an efficient and reliable solution.
FLAT WHITE is the ideal solution for those looking for a discreet but powerful illuminator, designed to withstand the test of time and operate in harsh environmental conditions, improving visibility and safety in access areas.
Technical data:
- Power supply:
• 12÷27 Vac | 3,5W
• 12÷39 Vdc | 3,5W
• 230 Vac with TRAFFIC DRIVER converter
- Brightness: 54 lumen
- Sorgente luminosa: 9 LED bianchi ad alta intensità
- Degree of protection: IP65
- Structure: metal structure with stainless steel screws
- Dimensions: 98×98×27 mm
- Estimated lifespan: 50.000 hours
- Operating Temperature: -20°C ÷ +60°C
-
