SH230LUX

Category:

Control unit for motorized rolling shutters with integrated courtesy light

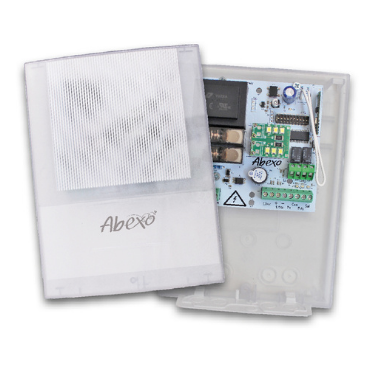

SH230LUX is the new and special version of the classic control unit for motorized shutters (SH230), and is equipped with an integrated courtesy light while maintaining the main features of the base version.

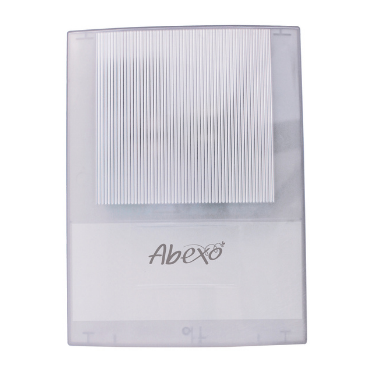

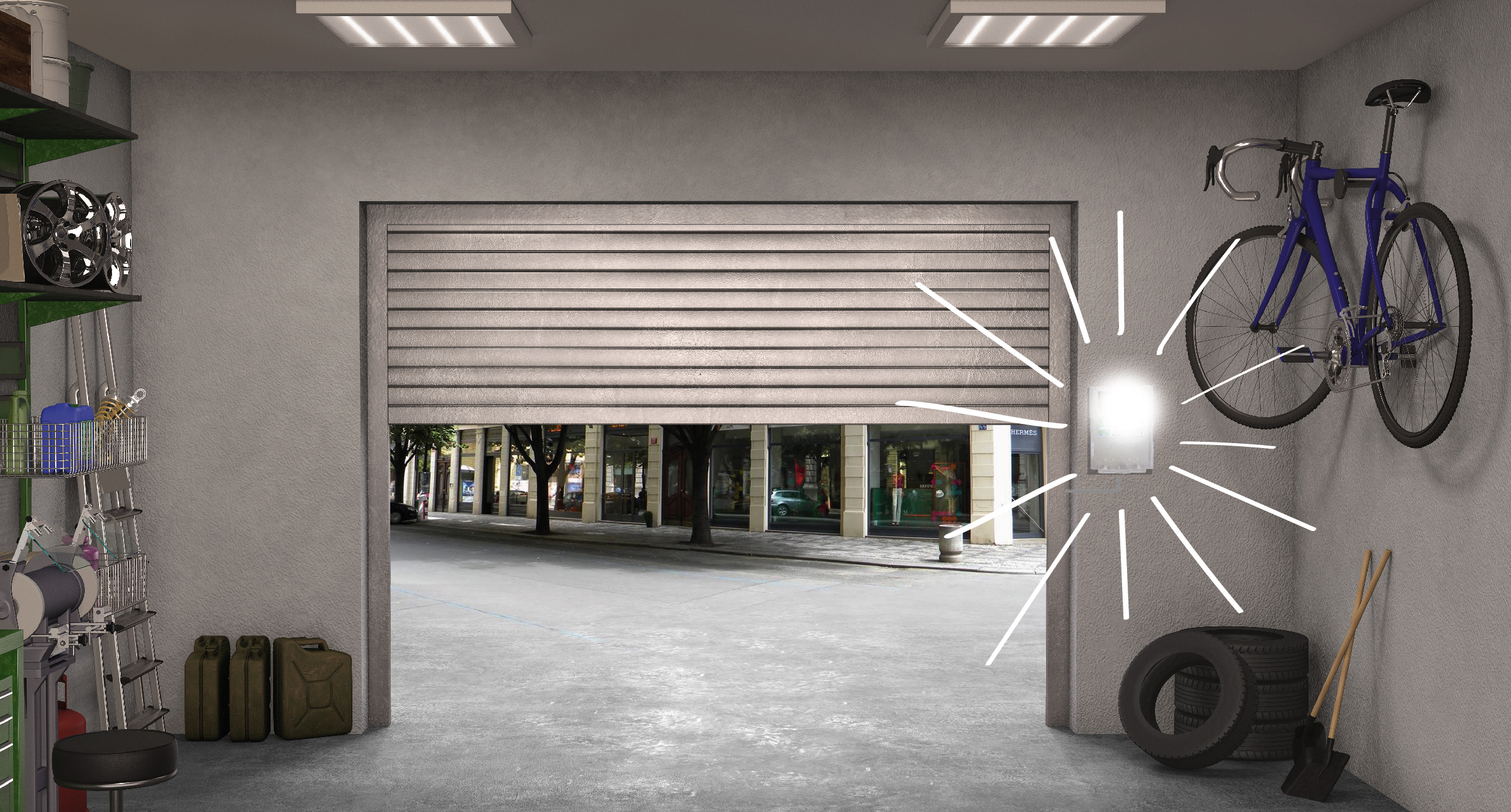

Its semi-transparent box allow to use SH230LUX as a wall-lamp (applique). The integrated radio receiver is compatible with all 433 Mhz fixed codes and some 433 Mhz rolling codes.

Thanks to a special setting of the DIP-SWITCH, it is possible to switch on the light without opening the shutter.

Technical features:
– Power supply: 230Vac +/-10%
– Motor power: 1350W (1HP)
– Working time: adjustable, 30 sec. – 2 min.
– Pause time: adjustable to 3 minutes max.
– Courtesy light time: adjustable to 3 minutes max.
– Safety edge input: 8k2 ohm or NC contact
– Courtesy light output: 12V
– Flashing lamp output: 12V
– Storable transmitters: 25
– Transmitters programming mode: self-learning
– Frequency: 433,92 Mhz
– Sensitivity: > 100dbm
– Antenna: integrated
– Operating temperature: -10C°, +70°C
– Application: standard 50 mt – dead man 10 mt

  Datasheet

  Instruction manual
