PBOX
Read more
Universal plastic box
Large box, in plastic material, for control units housing.
Including cable glands and slot for padlock.
Data sheet
UNIVERSAL COLUMNS DORICA LINE
Read more
Universal aluminum columns
Aluminium columns series designed to provide a strong, durable and practical product for installing photocells, keypads, etc
ALUMINIUM COLUMNS WITH TECHNOPOLYMER FIXING BASE
- Dorica 50
Universal aluminium column 52x70x50h mm with fixing base 115x85 mm

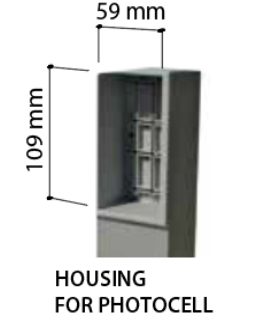

- Dorica 50 CAP
Universal aluminium column 52x70x50h mm with fixing base 115x85 mm,
with housing for photocell
- Dorica 100
Universal aluminium column 52x70x1000h mm with fixing base 115x85 mm
ALUMINIUM COLUMNS WITH METAL FIXING BASE

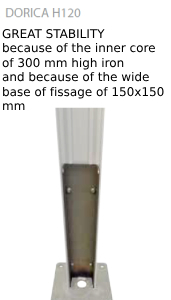

- Dorica h120
Universal aluminium column 52x70x1200h mm with fixing base 150x150 mm
For aluminium columns with technopolymer fixing base a “
zero-space fixing base” is available
For both aluminium columns with technopolymer fixing base and aluminium columns with metal fixing base the
foundation plate (see
data sheet) is available.

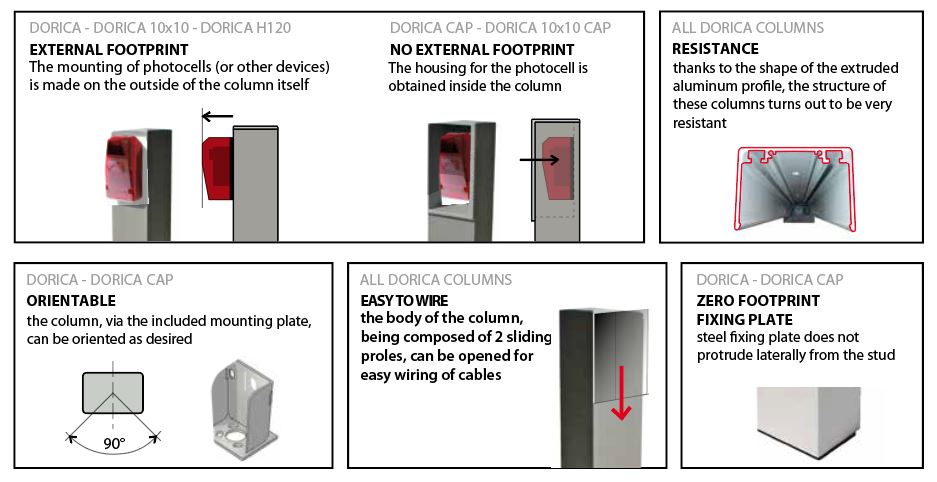

Here are the plus points of the Dorica line:
RESISTANCE
As the profile shape is extruded in aluminium, the structure of these columns is very resistant
EASY TO WIRE
The body column's, being composed of 2 sliding proles, can be opened to facilitate the wiring's cables
Data Sheet
Instructions Dorica 50
Instructions Dorica 50 CAP
Instructions Dorica 100
Instructions Dorica h120
COL
Read more
Fall preventing cables for gates
COL53 and
COL70 are
Gate fall arrest cables made of
stainless steel with Ø 5 mm x 133 wire section, with 2 loops. Complete with sheath and eyelet lug.
Versions available:
- COL53, length 530 mm
- COL70, length 700 mm
MOVEO
Read more
Manual barrier (stainless steel)
The MOVEO manual barrier allows you to demarcate access to a gateway up to 5.3 meters.
The foundation plate, fixing base and the external case are made of stainless steel.
The movement of the boom is balanced in all positions and the release is protected by key lock.
Five rod lengths available: 3 mt, 4 mt, 4.5 mt, 5.3 mt and 6 mt.
UNI-SAVE
Read more
Universal protection module
UNI-SAVE is a
universal protection module for opening systems.
It is composed of a modular metal structure that can adapt to different uses. By combining different modules, it can provide the optimal protection for the POLY chain lifter (2 elements) or the ELIOX solar boom (3 elements).
Find out systems for using the protection module:
POLY, automatic chain barrier
CREMAGLIERE M4
Read more
Tecnopolymer and steel racks for sliding gates
CRP500:
- Single bar lenght 1mt
- 6 mts pack of tecnopolymer rack
- N.5 central fixing elements module 4/ screws included
(5 screws per meter)
- Double sided toothing to make it usable on both sides
- No steel core: design and shapes studied to cancel any chance of strain
- Maximum capacity 500 kg
CRP700:
- Single bar lenght 1mt.
- 10 mts pack of tecnopolymer rack
- N.6 fixing elements module 4
- Maximum capacity 700 kg
CRP1200:
- Single bar lenght 1mt.
- 8 mts pack of tecnopolymer rack
- N.6 fixing elements module 4
- Maximum capacity 1200 kg
CRM3012:
- Single bar lenght 1mt
- 4 mts pack of galvanized steel racks (module 4)
- With bolts and spacers for wall mounting (to be welded)
Datasheet Tecnopolymer racks
Datasheet Steel racks
CONTROLGIR
Read more
"Parachute" brakes for sloping sliding gates
The CONTROLGIR line is indispensable for standardization in the presence of sliding gates on a slope ( it is necessary for there to be a rack). In case of unlocking of the automation gear motor, the internal hydraulic circuit (adjustable) has the function of "parachute," that is, to regulate the downward speed throughout the gate's travel. The operating speed should be adjusted just above that of the gearmotor so that it does not interfere with the automation.
CONTROLGIR-7
Braking system for sloping sliding gates - maximum slope 3,2° (7 Mn)
TECHNICAL DATA
M (required resistant moment): 7 Nm
Rack pitch: M4
Gate weight: 400 Kg (3920 N)
Slope: 3,2° MAX
Formula:
M [Nm] = P x sinß x 0,032
P = gate weight in Newtons (9.8N=1Kg)
sinß = sine of the tilt angle (ß= tilt in degrees)
P = 9.8 x 400kg = 3920 Newton
M = 3920 Newton x sin 3.2 x 0.032 = 7 Nm
CONTROLGIR-30
Braking system for sloping sliding gateCsO - mNaTxRimOuLmG IsRlo-p3e0 1 (33,90°N (3m0 )Nm)
TECHNICAL DATA
M (required resistant moment): 30 Nm
Rack pitch: M4
Gate weight: 400 Kg (3920 N)
Slope: 13,9° MAX
Formula:
M [Nm] = P x sinß x 0,032
P = gate weight in Newtons (9.8N=1Kg)
sinß = sine of the tilt angle (ß= tilt in degrees)
P = 9.8 x 400kg = 3920 Newton
M = 3920 Newton x sin 13.9 x 0.032 = 30 Nm
Data Sheet
Controlgir-7 Instructions manual
Controlgir-30 Instructions manual
ELV
Read more
Vertical 12V electric lock with ground latch
ELV is a
vertical electric lock 12V with ground latch.
TECHNICAL FEATURES:.
- Release mechanism 17 Vdc (12Vac)
- Release lock and n.2 fixing screws
- Catch plate
- 3 keys
- Metal body
- Dimensions: 66x35x122h mm
ECO-KEY
Read more
Two-contact key switch
ECO-KEY is a two-contact outdoor
key switch.
TECHNICAL FEATURES:.
- Start/Stop
- Material: technopolymer
- Degree of protection: IP54
- Operating temperature: -20°C +55°C
- Switch absorption: 16A
ECO-KEY-IN
Read more
Two contacts flush-mounted key switch
TECHNICAL DATA
- Start/Stop
- Cylinder PREFER
- Technopolymer
- Degree of protection: IP54
- Operating temperature:
- 20°C, +55°C
- Switches absorption: 16A
Data Sheet
FLAT
Read more
Wall-mounted aluminum key switch
FLAT is an aluminum wall-mounted
key selector
TECHNICAL FEATURES:.
- 2 contacts: 16A
- Dimensions: 79x30x79h mm
SMALL53
Read more
Wall-mounted selector switch with break release
TECHNICAL DATA
- Break release with hexagonal key
- Interchangeable cylinder made in Italy
- Key with European cylinder
- Release lever in the keyfob
- Metal body
- Dimensions: 53x108hx44 mm
Data Sheet
SMALL53-IN
Read more
Flush-mounted selector switch with break release
TECHNICAL DATA
- Flush-mounted on tubular 40x60mm
- Interchangeable cylinder made in Italy
- Break release with hexagonal key
- Dimensions: 57x120hx37 mm
Data Sheet
SMALL59
Read more
Wall-mounted aluminum security box with push-button panel and break release
Aluminum
wall-mounted security box
SMALL59, with push-button panel and break release.
TECHNICAL FEATURES:.
- Small size: 60 x 120 h x 45 mm
- Wall mounted
- Standard electrical connection with three-way terminal block
EASY UNLOCK
Read more
Internal release for roller shutters and emergency release for automatic doors
EASY UNLOCK is the first release device for the brake specially designed for security inside commercial premises. In the event of an emergency, it allows to release the motor brake and manually open the shutter in a quickly and intuitive way.
TECHNICAL DATA
- Connectable to external release device
- Flush-mounted and wall-mounted
- Size: 30x143h x 33 prof cm
- Frame 41 x 158h mm for flush mounting
- Color WHITE RAL 9010
Data Sheet
User manual
SLIM37-IN
Read more
Built-in aluminum security box with push-button panel and release break
Aluminum security box
SLIM 37,
built-in version with push-button panel and release break.
TECHNICAL FEATURES:
- Small dimensions: 37 x 243h x 33 mm
- Hole 30 x 235 mm
- Built-in
- Standard electrical connection in accordance with 3-way terminal block
- Unlocking option from both outside and inside
BOXX
Read more
Line of PORTA CENTRAL BOXES enclosures
The BOXX containers for control units, with a modern and compact design, include a range of versions manufactured entirely in stainless steel and adaptable to any need.
BOXX Wall-mounted container
BOXX-STP Mounting bracket BOXX pole
The extra-large BOXX version hsa been built to posses the maximum contenitive capacity, so that it could hold switches, electric devices and central units.
Technical characteristics:
-structure material: stainless steel
Data Sheet
BATTERIES
Read more
Range of spare batteries
A wide
range of spare BATTERIES for radio systems.
Products available:
- CR2032 3V ("Maxell"), battery for radio control
EGO
- BATT3.6V, 3.6V lithium battery for RadioBand 3
- BATT1.5V 1,5V AA alkaline battery for RadioBand1G and Sensitive safety edges
- CR2 3V lithium battery for EGO-KODE brand "Panasonic"
- ALK12V, Alkaline 12V battery for GP23AE transmitters
- CR2, 3V lithium battery ("Panasonic") for keyboard
EGO-KODE
- CR2450 3V battery for SIX
