Photocells and safety device

  • ACTIVE-RES

    ACTIVE-RES

    Read more

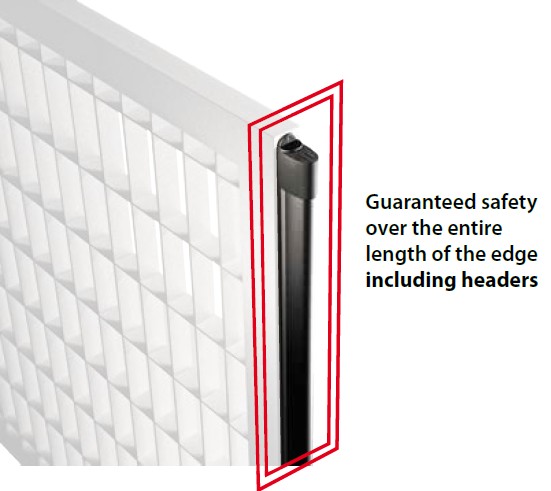

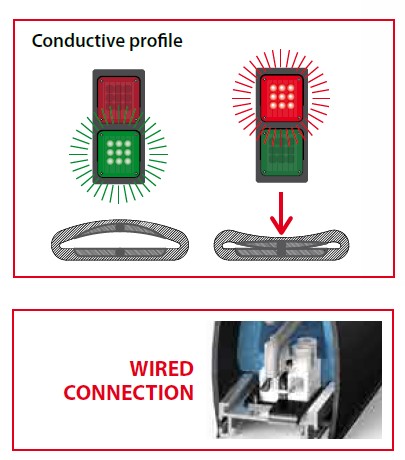

    Resistive wired safety edges

    Easy to install and can be shortened to size, ACTIVE-RES is using conductive technology in a small sensitive edge. The safety device ensures a rapid response to impacts along the entire length of the structure.   Control board for resistive edges: equipped with two channels, ensures continuous system self-checking, which is blocked in the case of faults. Available in protectioncategory 2 PL D (IMQ-certified) Technical features: - Operating temperature: -20°C, +55°C - Degree of protection: IP65
  • AOS124

    AOS124

    Read more

    OSE signal converter for LIGI07

    The AOS124 signal converter allows a LIGI light curtain with OSE output to be adapted to control panel that do not have this technology. The OSE signal is converted into a relay signal (potential-free). Advantages 1 input for 1 OSE device 1 relay output + test input NO or NC relay output LED indicators for input and output status Category 2 device, compliant with ISO13849-1 standard Technical specifications Power supply 19...35 VCC o 19...30 VCA Input 1x OSE signal Output Relay/TEST inputs Light Indicator Yellow LED Security Cat. 2, ISO 13849-1 Protection degree IP65 Data Sheet
  • FLATSCAN IP66

    FLATSCAN IP66

    Read more

    Laser detector for gates and industrial doors

    FLATSCAN IP66 is a compact, single curtain sensor composed of 400 beams, based on LASER technology, designed for use on automatic industrial doors and swing gates. The high accuracy of laser technology ensures precise detection of people and vehicles within a range of 5.5 m x 5.5 m, in indoor and outdoor environments. The robust metal housing with IP66 protection rating makes the sensor suitable for installations in industrial environments and outdoor applications. Technical characteristics: Technology: LASER scanner, time-of-flight measurement Mounting height: from 2.5 m to 5.5 m Maximum detection area: Max. 5.5 m × 5.5 m (4 m @ 5% reflectivity) Detection types: presence Radar field of view: 90° Tilt angle: ±3° (with bracket) Power supply: 12 – 24 V DC ±15% Output: 1 opto (galvanic isolation – polarity-free) > Max. switching voltage: 30 V AC / 42 V DC > Max. switching current: 100 mA > 1 relay (potential-free contact) > Max. contact voltage: 30 V AC / 42 V DC > Max. contact current: 1 A (resistive) > Max. switching power: 30 W DC / 60 VA AC Power consumption: approx. 2.3 W, peak current = 1 A LED: 1 tri-color LED: detection/output status Optical characteristics (IEC/EN 60825-1): > Wavelength 905 nm; output power < 0.1 mW; CLASS 1 > Wavelength 635 nm; output power < 1 mW; CLASS 2 – visible spot Vibrations: < 2 G Material / Color: Aluminum A380 – black Dimensions: 124 mm × 90 mm × 50 mm without bracket Protection rating: IP66 (IEC/EN 60529) Operating temperature: -30°C to +60°C when powered Humidity: 0–95% non-condensing Standards: EN 12453 (type D) APPLICATIONS ON: Data Sheet Instructions Manual
  • L36

    L36

    Read more

    Laser technology sensor for industrial gates and doors

    L36 is an innovative photocell based on time-of-flight (ToF) laser technology, designed for use on gates as a security device. Compared to traditional photocells, it does not require two devices or reflectors. L36 uses a laser rangefinder to measure the distance to an obstacle. The photocell can be used in 3 different modes: Mode A OPERATION AS A PHOTOCELL This mode requires a fixed physical reference point opposite the laser rangefinder. Maximum detection distance: 9 m. The photocell analyses two events. Obstacle detection at shorter distance than the stored distance, during the learning phase. Mode B OPERATION AS A PROXIMITY SENSOR (APPROACH PERPENDICULAR TO THE LASER BEAM) Maximum reading distance 6 m, optimised for detecting movements perpendicular to the beam. The reading distance is programmable and can be adjusted in increments of 0.5 m during programming. Mode C OPERATION AS A SENSOR APPROACHING THE PHOTOCELL FROM ANY DIRECTION Maximum reading distance 6 m, optimised for detecting movements approaching the photocell from any direction. The reading distance is programmable and can be adjusted in increments of 0.5 m during programming. Technical characteristics: Power supply: 12-24V AC/DC Transmission/reception angle: +/- 25° Head rotation angle: 180° Maximum range Mode A: 9 m Modes B and C: 6 m Maximum output load: 30Vdc, 0.5A Operating temperature: -10°C to +60°C Protection class: IP54 Dimensions: 36x123x33 mm Weight: 69 g Data Sheet Instruction Manual
  • SPK

    SPK

    Read more

    Spiral cable

    SPK spiral cables are made from high-quality materials, making them suitable for the most intensive installations. The extension factor is four times the block length (BL). Spiral cables are resistant to microbes, hydrolysis and almost all mineral oils, thanks to a special sheath compound. In addition, spiral cables are UV-stable and halogen-free. The material is black PUR/PUR, the colour of the wires complies with DIN 47100: 3 wires = brown, white, green 4 wires = brown, white, green, yellow 5 wires = brown, white, green, yellow, grey 6 wires = brown, white, green, yellow, grey, pink Variable cable ends (see table), including 40, 50, 60, 80, 100 or 200 mm without sheath and equipped with cable lugs (AEH). Data sheet
  • WS-SIGNAL 15

    WS-SIGNAL 15

    Read more

    Optics for sensor profile

    WS-SIGNAL 15 optical  profile device is equipped with an integrated diagnostic system that provides an output indicating the quality of the rubber profile. This system is integrated into the transmitter, so no other measuring instruments are required. All visible LED indicators show the switching states. This enhances operational safety and is also useful for maintenance operations. The precise self-calibration of the sensors ensures consistent switching behavior across all door widths. Box includes: nr.1 transmitter unit and nr.1 receiver unit -RJ connector compatible with Hörmann control panels -Diagnostic system with integrated LEDs -Switching status indicators -Insensitive to wind loads and bending -High immunity to electromagnetic interference (EMC) -Protection against polarity reversal and short circuits -Regulated transmitted power   For installation on doors with a modular connector system. WS-SIGNAL optical safety device is an innovative, high-quality product equipped with a modular connector compatible with the Hörmann SKS system. Diagnostics After the electronics are powered up, the system evaluates the quality of the rubber profile. The result is displayed as a series of flashes from the LED indicator light, visible on the outside of the profile: - 01 to 06 flashes: optimal conditions - 07 to 14 flashes: good conditions - 15 to 16 flashes: the safety profile is still functional, but operational safety cannot be guaranteed in the long term. It is recommended to check the rubber profile for possible damage or impurities. To restart the diagnostics, simply disconnect and then reconnect the power supply. After the diagnostic indication, the device automatically switches to standard mode, and only the yellow LED lights up when the light beam is interrupted. Technical features Optical range: From 1 to 12 metres, depending on the quality of the rubber profile Operating voltage: From 10 to 16 VDC, with reverse polarity protection Electricity consumption: 40 mA (±2 %) Light type: Pulsed infrared, 880 nm Diagnostic display: Yellow LED ring for rubber profile diagnostics, flashes from 1 to 16 pulses Operating display Yellow LED ring lights up when the safeguard edge is activated Signal output transistor, max. load 20 mA, protected against short circuits Output level: rectangular signal – low: 0 to 1 V / high: 3 to 5 V Signal frequency: usually 900 Hz Materials supplied Transmitter: ABS plastic Receiver: Lexan, IR transparent Connection cable: PVC, 600 mm with modular connector Protection degree: IP67 according to EN60529, encapsulated with 2K epoxy resin Operating temperature: -25°C,+60°C Storage temperature: -25°C,+75°C Weight of receiver: 21gr Weight of transmitter: 20gr Data sheet
  • SW50 fotocellule da incasso intercambiabili con le più diffuse marche sul mercato

    SW50

    Read more
    Pair of built-in photocells The SW50 are built-in photocells with a 20 mt range. Due to the recessed shape and size, the SW50 photocell is interchangeable with the most popular models on the market. Technical features:. Power supply: 12/24 VDC/ac Power consumption: 35 mA Relay capacity: 1A - 24V I.R. wavelength: 950 nm Range: 20 mt Modulation frequency: 1500 Hz Synchronized mode: only when supplied with alternating current Operating temperature: -20°C, +60°C   Datasheet (pdf)   User Manual (pdf)
  • ACTIVE R3, bordo sensibile radio

    ACTIVE-R3

    Read more
    Radio Safety Edge
    The ACTIVE-R3 safety edge is a small and discreet safety edge with conductive technology that ensures rapid response to impacts, over the entire length of the structure. The ACTIVE-R safety edge transmits the signal through the built-in two-way radio transmitter (868 MHz) powered by two 3.6V lithium batteries. This edge is certified as a safety device cat.2, EN 12978.. The ACTIVE-R is easy to install and can be shortened to make it perfectly fit your needs. Available in sizes 1.20 - 1.60 - 2.00 - 2.50 mt. TECHNICAL DATA: - Operating temperature: -20°C, 55°C; - Frequency: 868 Mhz - Degree of protection: IP65; Find out other safety edges: ACTIVE, wired safety edge; CAPTIVE, Crashless (crash avoidance) safety edge.
  • Sistema captive - bordi di sicurezza resistivi

    CAPTIVE

    Read more

    CRASHLESS safety edge

    The CAPTIVE crashless resistive edge is certified as a class 2 safety device according to EN 12978 The CRASHLESS ("impactless") function allows, for most of the gate's travel, to avoid collision with obstacles, cars or people. The two inhibitory magnets perform a dual function: - they deactivate the capacitive part when the gate is stopped to save battery life - during the closing phase, the capacitive device would read the closing column as an obstacle, but the magnets connected to the receiver inhibit the crashless function, leaving the safety edge active It is recommended to synchronize the inhibition of the capacitive function with the slowing down of the motor to more easily fall within the crash force limits imposed by current regulations. Available in sizes 1.20 - 1.60 - 2.00 - 2.50 mt. TECHNICAL DATA: - Operating temperature: -20°C, 55°C; - Operating consumption: 12 mA - Frequency: 868 Mhz - Degree of protection: IP65; Discover other sensitive security edges: ACTIVE, wired security edge; ACTIVE-R3, radio security edge.
  • Micro fotocellula micro-p27s, con sincronismo, relè reed

    MICRO P27S

    Read more
    Micro photocell with synchronism and REED relay
    MICRO-P27 is a micro photocell with a miniaturized design that easily fits any fixing space - even the smallest ones, and guarantee a minimal visual impact of the photocell on the automation. The miniaturized design is typical of the MICRO range (Micro-Flash, Micro-Traffic, Micro-RGB). The integrated micro relay with REED technology, and without levers, also ensure a long lifespan and a wider power supply range - compared to traditional relays. Discover the other products of the MICRO range: MICRO-FLASH, lampeggiatore a led da parete; MICRO-TRAFFIC, led traffic light; MICRO-RGB, led signal light - RGB. TECHNICAL FEATURES: - Power supply: 12-24 Vdc/ca - Absorption: 60 mA - Relay: REED TECHNOLOGY - Max door width: 15 m - Relay capacity: 0,5 A - 24 V - Frequency: 1500 Hz - Light: modulated infra-red - Operating temperature: : -20°C, +60°C - Weight (plastic): 12gr [video src="https://www.abexo.tech/wp-content/uploads/2019/10/video_P27_teaser_v_3-1.mp4.mp4"]

  • fotocellula a luce polarizzata REFLEX - portata da 8 a 15 mt

    REFLEX

    Read more
    Polarized light photocell
    The polarized light photocell REFLEX is quick and easy to install: the wiring, in fact, takes place only on one side, while on the opposite side it is sufficient to place the reflector at the same height as the photocell. Alignment between the two elements is facilitated by positioning LEDs. The range of the REFLEX photocell varies from 8 to 15 mt, depending on the retro-reflector: - rectangular - 8 mt - round - 12 mt - square - up to 15 mt In addition, the wide range of accessories ensures its excellent reliability and preserves the photocell from condensation, rain, shocks and reflections. TECHNICAL DATA:. - Power supply: 10..36 Vdc / 24 Vac 25% - Operations and power consumption: < 100 ms on / max 30mA/24V - Light type and cone opening: 68 0nm / approx. 1.50 total angle - Delay: < 10 ms - Range (depending on reflector): 8mt - rectangular, 12mt - round, 15mt - square - Cable connections: max 1.5mm2 - Protection Degree: IP65 (EN60529); - Operating temperature: -25° / 60°. - Dimensions (LxWxH) and weight: 86 x 44 x 39 mm / 60 gr. WARNING: It is important to recognize the real REFLEX photocell from the copies. To make sure you are using the original, check out our pdf guide "How to recognize the REAL REFLEX".
  • Coppia di fotocellule sincronizzate, portata 20 mt

    INFRA16

    Read more
    Pair of synchronized photocells
    The INFRA16 photocells are synchronized and with a range of up to 20 meters. Technical features:. Power supply: 12/24 VDC/ac Absorption: 60 mA Relay capacity: 1A - 24V I.R. wavelength: 880 nm Range: 20 mt Modulation frequency: 1500 Hz Synchronized mode: only when supplied with alternating current Operating temperature: -20°C, +60°C Datasheet (pdf)
  • P41 coppia di fotocellule a infarossi orientabili, portata 15 mt

    P41

    Read more
    Pair of adjustable infrared photocells The P41 photocells are adjustable and with a range of up to 15 meters. Technical features: Power supply: 12/24 Vdc/ac Absorption: 60 mA Relay capacity: 1A – 24V I.R. wavelength: 880 nm Range: 15 mt Modulation frequency: 1500 Hz Synchronized mode: only when supplied with alternating current Operating temperature: -20°C, +60°C   Datasheet (pdf)   User Manual (pdf)
  • P37B

    P37B

    Read more
    P37B-Batteries movable photocells.
    Receiver: - Power Supply: 12/24 Vcc/ca - Absorption: 35mA -Relay Range: 1A-24V -Range: 10-15m Transmitter: - Power Supply: 3V ( n.2 alkaline batteries AAA 1.5V) -Absorption: 25mA -Range: 10m (open PJ)/15m (closed PJ) - Operating Temperature: -20 to +60° Data Sheet Instruction Manual
  • LIGI, barriera protezione infrarossi

    LIGI

    Read more

    Infrared Protection Barriers

    The LIGI infrared barrier is a certified safety device (EN 12978/EN ISO 13849, cat. 2)that avoids impact (CRASHLESS) and allows safety edges to be removed from the door. Its small size (16x16 mm) and the possibility of simple and direct mounting on the porta via through-holes make it suitable for different types of installations and easily applicable in multiple contexts. It is available in two versions: - version A, for fast doors (56 spokes per 2.5 m, one spoke every 45mm) - version C, for all other types of locks/automations (23 spokes for 2.5m, one spoke every 45mm up to the height of 500mm, then one spoke every 180mm) Maximum operational safety: the LIGI model is non responsive to external light, such that even direct radiation does not limit its operation and it is immune to electromagnetic interference (EMC). Modernization of older door systems: The light curtain is perfectly suited for the conversion or modernization of door systems that cannot meet the required maximum closing forces. Smart functions and easy mounting: the required opening angle for safety reasons of ±5° (EN 12978) poses no problem for mounting the LIGI light curtain. Mechanically adjustable adjustment clamps and a software adjustment mode are available for this purpose with the help of the LED display. Certifications: EN 12978 / EN ISO 13849, Cat. 2, PLd / IEC 61496-2 / EN 12445 Ch. 7 / EN 12453 Ch. 5.5.1 / Devices C D and E in unlimited mode (and achieved relevant certification).
  • LIGI 07

    LIGI 07

    Read more

    Photoelectric immaterial barriers for sectional and high-speed doors

    As with all other Witt products, the LIGI 07 barrier has been specifically designed to operate in the harsh conditions typical of industrial gates. The super-compact, integrated design measures just 12x15mm, offering perfect protection against the humidity and vibrations typical of automatic door installations. The LIGI 07 barrier sets new standards for the future with state-of-theart electronics and intelligent firmware. It is compatible with all standard control units for automation and can be used with almost all existing systems. Advantages Very compact design Long range Integrated electronics Adaptable to different types of installations For doors up to 10 m wide Can be installed in the door jamb with the BLANKING feature (beam cancellation) Extremely robust, all components are integrated into a single metal body Pre-drilled with front holes for direct mounting Available with OSE output or solid-state relay (SSR) Electronic self-alignment Integrated diagnostics Highly resistant to external optical interference Compact size: only 12x15mm Technical specifications Passage width 1,6 - 10 m Operating voltage 10 - 30 Vcc Current consumption Transmitter: approx. 30 mA (24 Vdc) (24 Vdc) Receiver: approx. 20 mA (24 Vdc) Power consumption approx 1,2 W Optical emission modulated infrared OSE output Approximately 950 Hz, alternating signal, 4 V 20 mA, short-circuit protection and protected against polarity reversal Maximum leakage current max 30 uA Pull-down resistance 220 ohm Output SSR solid state relay 100 mA, protected circuits Intrinsic capacity 220 nF, max. 30 Vcc, max. 21 Vca, Rs on < 35 ohm Response time < 100ms Reboot time < 400 ms Environment lighting > 100 klux External material Fully resin-coated aluminium profile Connector 6-pin M8 plug Certification IP67, EN60529 Operating temperature -20°, +60°C Storage temperature -30°, +70°C Available versions: -OSE output with blanking function (gradual beam blanking during door downward movement) -SSR output (solid state relay) selectable NC/NO, with blanking function LIGI 07 can ONLY be installed on high-speed doors
  • LZR-I100/LZR-I110

    LZR-I100/LZR-I110

    Read more
    Security sensor for swing and sliding gates and industrial doors LZR-i100 and LZR-i110 detectors are based on highly accurate time-of-flight technology, ensuring optimal safety at the threshold and in the proximity of the door, with four laser curtains that define corresponding detection areas.   PERFORMANCE - Adjustable detection area depth (up to 1 m) depending on installation height - Certified safety solution for industrial doors: PL “d” / CAT 2 according to EN ISO 13849-1 and type E according to EN 12453 - High level of safety with complete three-dimensional detection in front of the door - Small object detection APPLICATIONS - Safety during door opening and closing with 2 separate detection zones - Possibility to create 2 virtual buttons for door opening DESIGNED FOR INDUSTRIAL CONTEXTS - Filters door vibrations and environmental interference - Filters door frame deformations caused by wind - Protection rating IP65 Technical features LZR-i110 - Maximum detection distance: 5 m × 5 m LZR-i100 - Maximum detection distance: 9.9 m × 9.9 m Power supply: 10-35V DC on connector Output: 2 electronic relays (galvanic isolation – polarity-free) Maximum switching voltage: 35 VDC / 24 VAC Maximum switchable current: 80 mA (resistive) Dimensions: 125 mm (W) × 93 mm (D) × 70 mm (H) (mounting bracket +14 mm) Protection rating: IP65 Operating temperature: -30°C to +60°C under power Compliance: EMC 2014/30/EU; LVD 2014/35/EU; MD 2006/42/EC; ROHS 2 2011/65/EU; EN 12453 chapter 5.1.1.6, chapter 5.5.1 Safety device E; EN 12978; EN ISO 13849-1 Pl ‘d’/ CAT2; EN 60529; IEC 60825-1; EN 60950-1; EN 61000-6-2; EN 61000-6-3; IEC 61496-1; EN 61496-3 ESPE Type2; EN 62061: 2005 SIL 2; DIN 18650-1 Chapter 5.7.4 Data sheet Instructions Manual
  • LZR-S600

    LZR-S600

    Read more
    Laser detector for building security  LZR-S600 is a LASER security detector designed to protect property and buildings from theft, intrusion and vandalism. It is a compact, easy-to-install, plug & play solution with a self learning function. - Ability to detect small objects with a reflectivity factor of 2% - Does not require illumination of the object to be protected (unlike standard camera systems) - Effective protection against environmental disturbances (flight time and special software) Technical features Maximum detection distance: from 10×10 to 25×25 (4 planes in height, width, and depth) Detection mode: motion and presence Power supply: 10–35 V DC via connector Output: 2 independent relays congurable as pre-alarm/alarm, day/night, anti-vandalism Protection rating: IP65 Operating temperature: -30°C to +60°C under power Compliance: 2006/95/EC: LVD; 2002/95/EC: RoHS; 2004/108/EC: EMC ; EN 60529:2001; IEC 60825 - 1: 2007 Laser Class 1 & 3R ; EN 61000-6-2: 2005 EMC - Industrial level ; EN 61000-6-3: 2006 EMC - Commercial level Data Sheet Instructions Manual
  • LZR-P110

    LZR-P110

    Read more

    Laser detector for automatic doors

      The LZR-P110 laser detector ensures the protection of sliding doors, swing doors and revolving doors in accordance with DIN 18650 and EN 16005 standards. - Time-of-flight measurement: immune to ground reflectivity - Free positioning of 2 virtual buttons for opening sliding doors - Three-dimensional protection at the door threshold and near the closing area with 4 high-resolution laser curtains - Integrated heating system and snow and rain protection filter (for outdoor use) Technical features Maximum detection distance: 5×5 m Detection mode: presence Power supply: 10–35 V DC via connector Output: 2 congurable relays (e.g., slow speed and locking for revolving doors, virtual button and safety mode for sliding doors) Protection rating: IP65 Operating temperature: -30°C to +60°C under power Compliance: 2006/95/EC: LVD; 2002/95/EC: RoHS; 2004/108/EC: EMC; 2006/42/EC: MD; EN 12978:2009; EN ISO 13849-1:2008 CAT2, Pl “d”; EN 60529:2001; IEC 60825-1:2007; EN 60950-1:2005; EN 61000-6-2:2005; EN 61000-6-3:2006; IEC 61496-1:2009; EN 61496-3:2008 ESPE Type 2; EN 62061:2005 SIL 2; EN 16005:2012 Chapter 4.6.8; DIN 18650-1:2010 Chapter 5.7.4; BS 7036-1:1996 Chapter 8.1 Data Sheet Instructions Manual
  • ARGOS fotocellule ad ingombro zero, ad incasso, portata 20 mt IP67

    ARGOS

    Read more

    Compact synchronised photocells

    The ARGOS photocell is a barrier sensor designed for flush mounting directly into structural profiles, ensuring discreet and secure installation. Advanced technology ensures reliable detection, resistance to environmental conditions, and optimal integration into any type of structure. -Synchronised (2 pairs) -Wear-free semiconductor relays -Clogging indicator -Insensitive to stray light -IP67, electronics fully encapsulated in resin -Pre-wired: cable length 4m   Technical specifications: Operating voltage: 10÷40 Vdc / 10÷30 Vac Door width: 1÷20 m (pre-set) Output: semi-conductor output NC contact: potential-free/test input LED indicators: Transmitter: green LED Receiver: red LED Connection: Transmitter: 3x0.25 mm² Receiver: 5x0.25 mm² Protection degree: IP67 fully encapsulated Data Sheet
  • LOW POWER SIGNAL

    LOW POWER SIGNAL

    Read more

    Optics for sensor profile

    Extremely low power consumption Integrated diagnostic system with visual display LED indicator for switching status OSE output signal IP 67, fully protected electronics LOW-POWER-SIGNAL automatically selects the output frequency depending on the connected device: safety signals transmitted to a battery-powered radio link will therefore have a lower frequency than if they were sent directly to the control panel via a spiral cable. This increases battery life and ensures compatibility with most control panels on the market. Technical specifications Power supply 3...27 VCC Maximum door width 1...12 m Output OSE signal Warning lights Yellow LED indicator Connections 3x0,14 mm² Protection degree IP67, electronics encapsulated in epoxy resin Data Sheet
